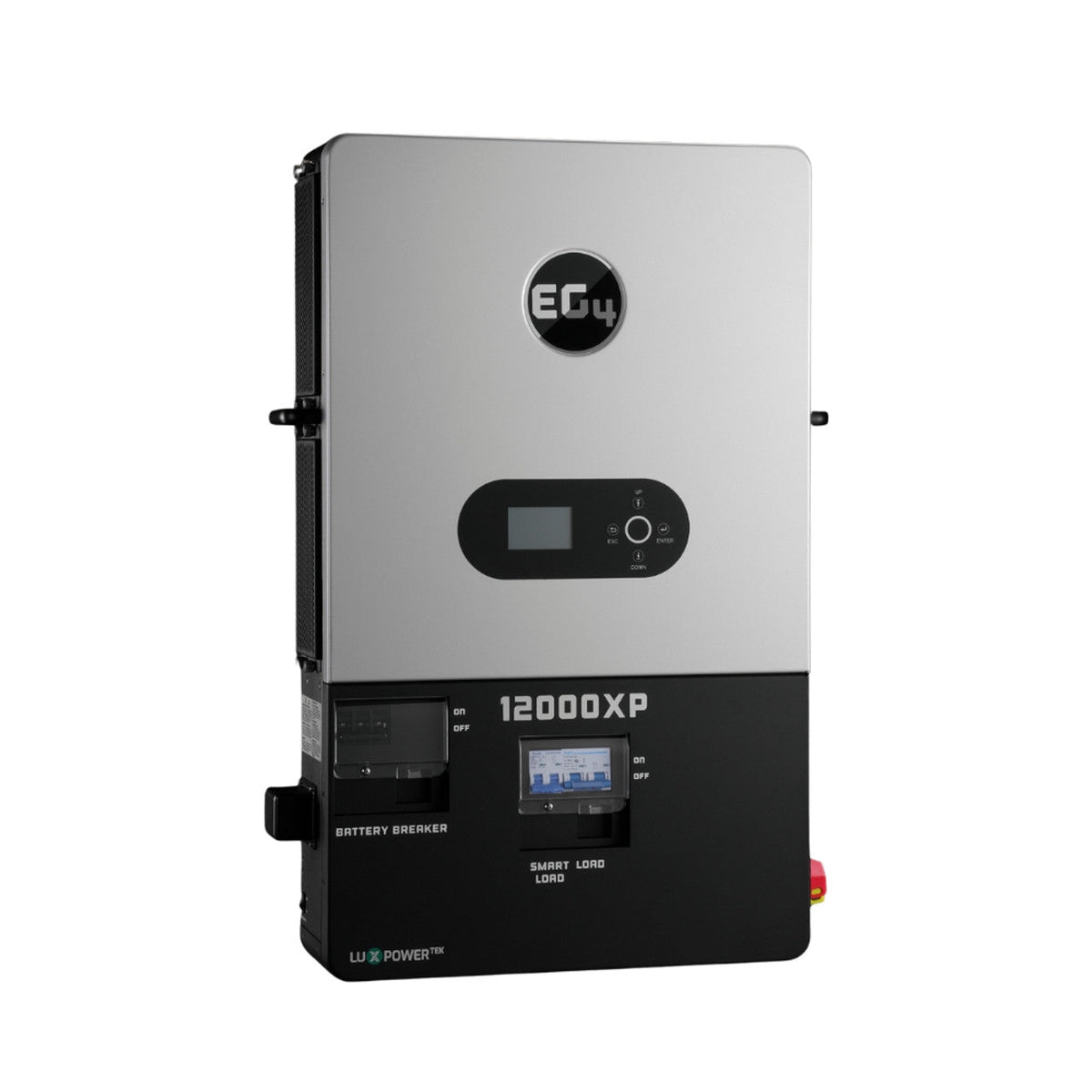

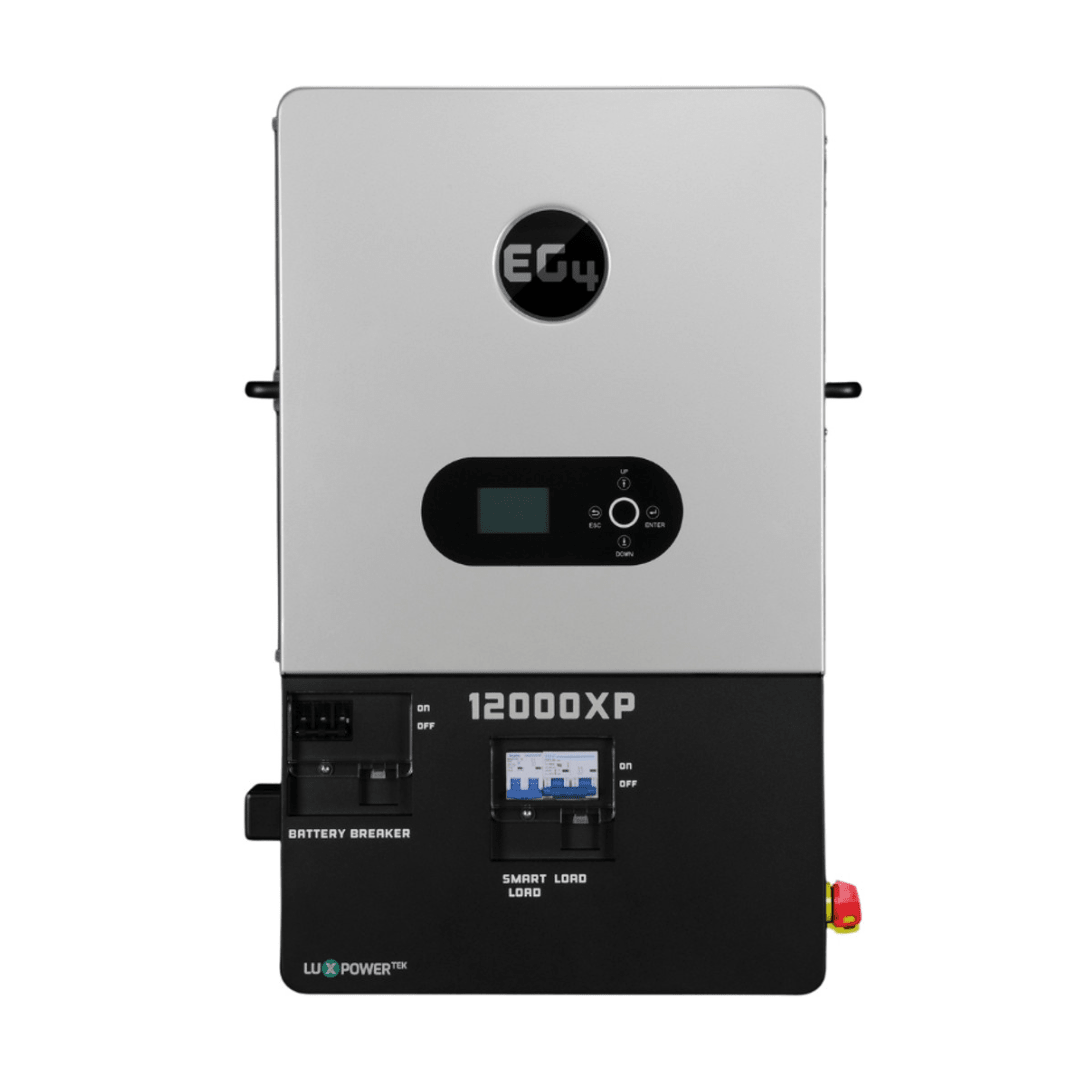

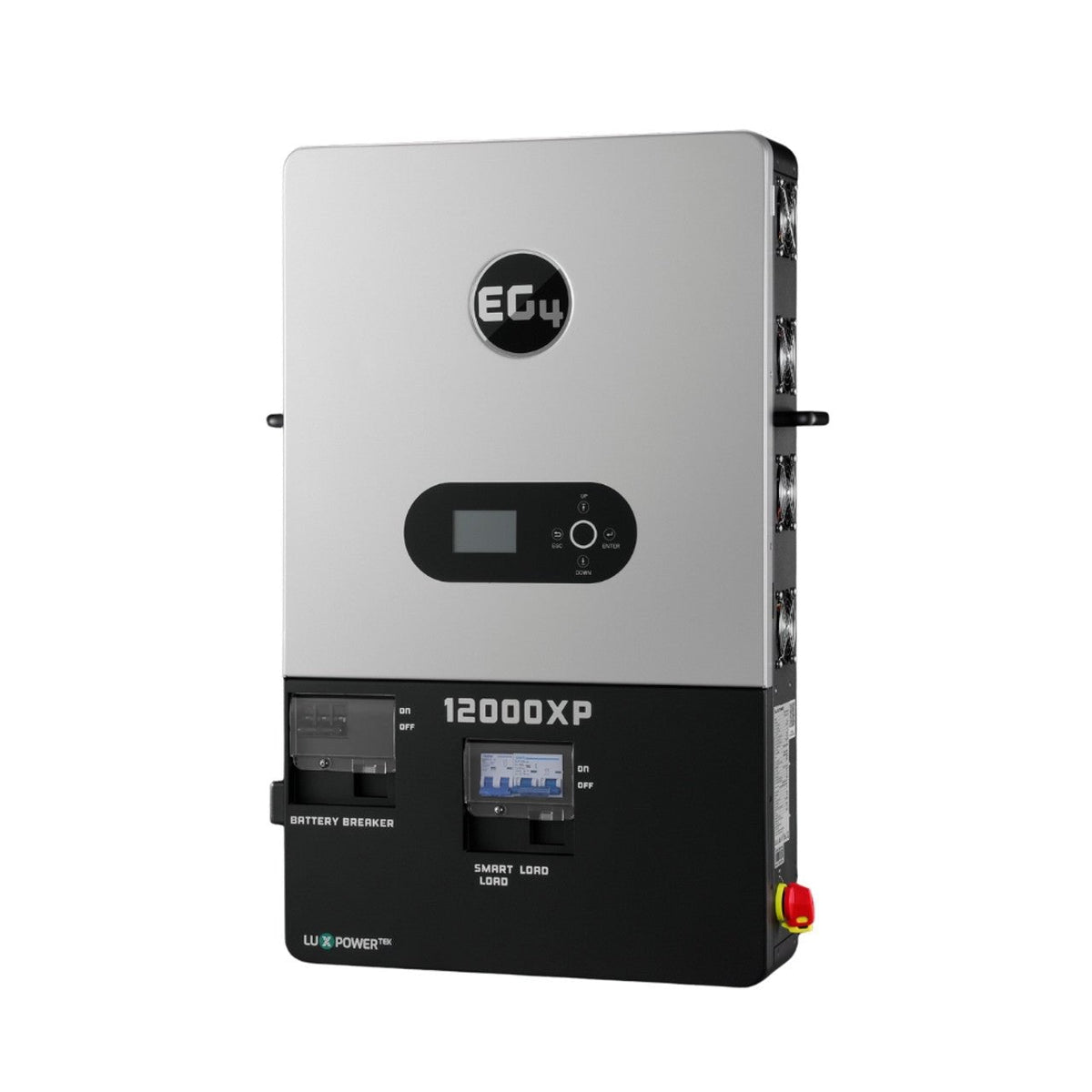

EG4 12000XP 12kW Off-Grid Split Phase Hybrid Solar Inverter 48V

The EG4 12000XP is a professional-grade, all-in-one hybrid solar inverter built for homeowners and commercial operators who demand reliable, high-capacity off-grid power. With 12,000W continuous output, 24,000W PV input capacity, and a 99% MPPT efficiency rating, it delivers serious performance without compromise.

• 12,000W Continuous Output / 18,000W Surge: Handles heavy-duty appliances and equipment with ease, keeping your home or facility running without interruption.
• 24,000W PV Input at 480VDC: High-voltage input support reduces cabling complexity and eliminates the need for a combiner box — a cleaner, more cost-effective installation.
• Dual MPPT Design: Independently tracks two PV string inputs for optimal energy harvest under varying sunlight conditions, maximizing every available hour of daylight.
• 99% MPPT Efficiency: Minimizes energy loss at the charge controller stage, so more of what your panels produce reaches your batteries and loads.
• Split Phase 48V Output: Delivers standard 120/240V split-phase power, compatible with the full range of residential and light commercial electrical loads.
• Plug-In Wi-Fi Monitoring: Connect to the EG4 app or monitoring portal to track system performance and adjust settings remotely from any device.
• Closed-Loop Battery Communication: Seamlessly integrates with EG4 48V batteries and other supported brands for enhanced safety, balanced charging, and optimized system performance.
• NEC 690.12 Rapid Shutdown Ready: Built-in RSD compliance supports code-compliant installations and adds an essential layer of safety for rooftop and ground-mount systems.
• Grid-Tie or Off-Grid Flexibility: Operates fully off-grid or draws from the utility grid when needed — ideal for both primary off-grid living and grid-backup applications.

Whether you are building a self-sufficient homestead or a resilient commercial microgrid, the EG4 12000XP provides the power capacity, efficiency, and smart monitoring features to make it a dependable centerpiece of your solar energy system.
